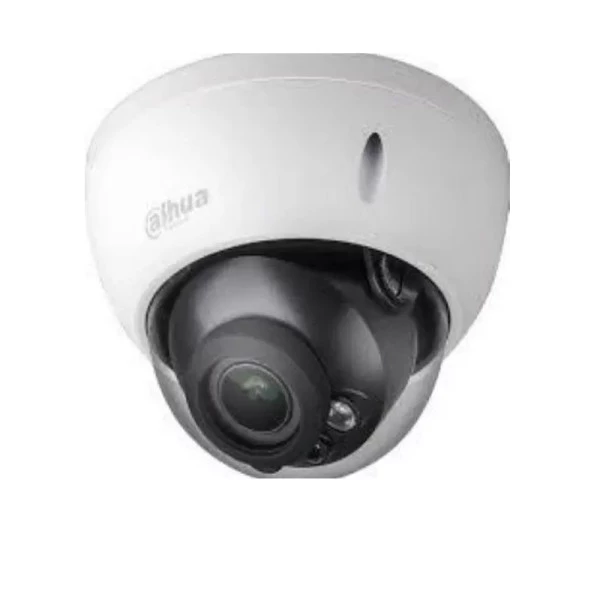

Camera De Monitoramento Ip Dome Fixa Hd 1.3Mp Dh-Ipc-Hdbw1120E Dahua

Camera De Monitoramento Ip Dome Fixa Hd 1.3Mp Dh-Ipc-Hdbw1120E Dahua

Image Sensor 1/3" 1.3Megapixel progresive CMOS
Effective Pixels 1280(H)x960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.5Lux/F2.5(Color), 0Lux/F2.5(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 24
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.5/F2.5
Angle of View H:92°/72°, V:66°/53°
Focus Control Fixed
Close Focus Distance N/A
PTZ Pan/Tilt Range
Pan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355°
Video
Compression H.264/H.264B/H.264H/MJPEG
Streaming Capability 2 Streams
Resolution 1.3M(1280×960)/720P(1280×720)/VGA(640×480)/QVGA(320×240)
Frame Rate 1.3M (1 ~ 25/30fps)s)
VGA(1 ~ 25/30fps) Bit Rate Control
CBR/VBR Bit Rate
H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image
Support Smart IR
Support Digital Zoom 16x
Flip 0°/90°/180°/270°
MirrorOff / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network Ethernet
RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n), 50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage),Local PC for instant recording, 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical Power Supply DC12V
Power Consumption <4.6W
Environmental
Operating Conditions -10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH
Strorage Conditions -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction Casing
Metal
DimensionsF109.9mm × 81mm (4.33" x 3.19")
Net Weight 0.34Kg (0.75lb)
Gross Weight 0.47Kg (1.04lb)

NCM: 8525.81.00
